A6-1325-L8-S ATC CNC Router machine with Saw

Feb. 28, 2023

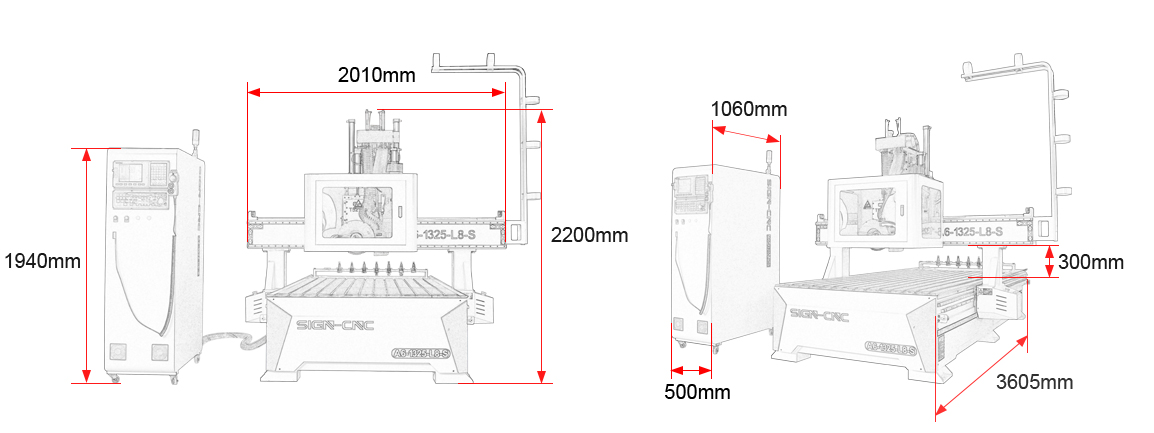

Machine Size Overview

尺寸图 (4).jpg

Machine Features:

1. Working area 1300*2500*300mm

2. Hiwin 25 square guide rails, gear and rack transmission

3. HQD 9.0kw air cooling spindle and 11 kw Delta inverter

4. Automatic steering saw adjustment freely on X and Y

5. Syntec 1000W servo motor and driver

6. X Y motor with Japanese Shimpo reducer

7. Taiwan SYNTEC 60WE control system

8. Vacuum table and 7.5 kw vacuum pump

9. 8 tool Magazine and Linear type tool changer

10. Automatic oil system and 3.0kw Dust collector.

Applications:Wooden furniture industry, furniture decoration, musical instruments, wooden crafts, large-scale wood carving, solid wood furniture, solid wood murals, composite doors, paint-free doors, cabinet doors, advertising industry, mold industry, relief, toy production, bedside tables, screen sculptures wait

Material:Wood, acrylic, artificial stone, artificial marble, bamboo, organic board, two-color board, PVC board, aluminum, brass and other materials.
